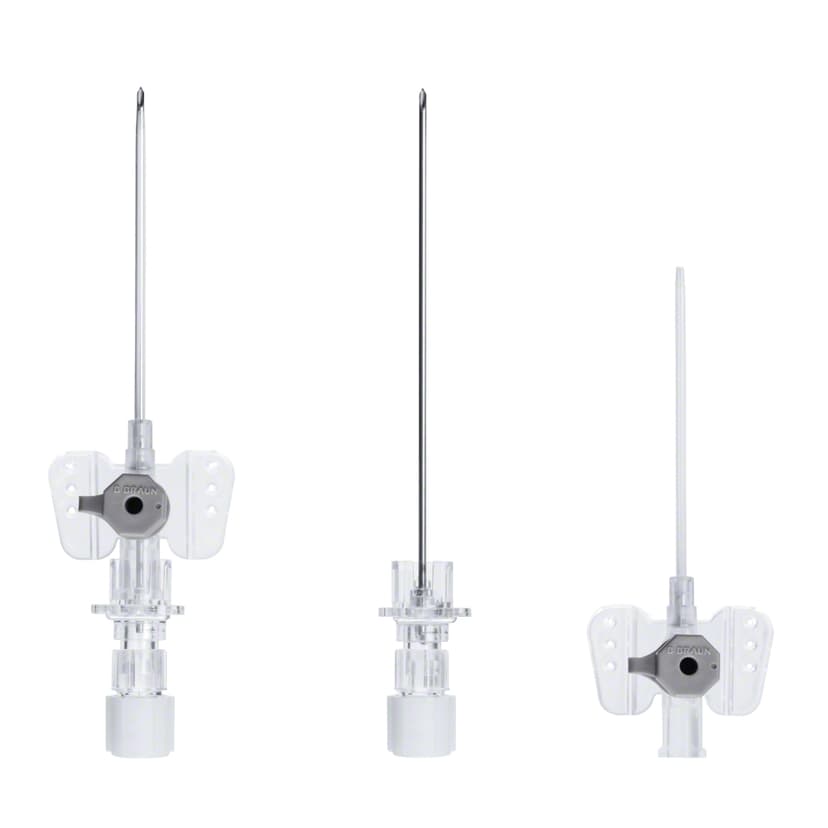

VASOFIX IV G16X50MM GREY | B. Braun4268172BVASOFIX IV G16X50MM GREY
- Nazwa marki
- Vasofix®
- Product name (HC)
- Vasofix® Braunüle®
- Rozszerzonyrodzaj produktu
- IV catheter
- Wing
- Wing
- Injection port
- Yes
- wskaźnik przepływu
- 196.00 ml/min
- Connection
- Luer-Lock/female
- Catheter-Gauge
- 16
- Zewnętrzne-ø cewnika (skala me
- 1.70 mm
- Inner-ø catheter (metr.)
- 1.30 mm
- Residual volume
- 0.189 ml
- Kolor
- grey
- Długość cewnika
- 50 mm
- Length of catheter (inch)
- 2"
- Material of catheter
- FEP
- Safety clip
- No
- X-ray contrastable marking
- X-ray contrast thread
- Type of packaging
- Blister
- Rodzaj Sterylizacji (dopuszcza
- No
- Produktu (w opakowaniu) zawier
- No
- Rodzaj Sterylizacji (dopuszcza
- No
- Product contains Nickel
- Yes
- Remark critical attributes
- Needle cont. Nickel
- Jednorazowego / wielokrotnego
- jednorazowego użytku
- Sterylność
- Sterylny
- Rodzaj sterylizacji
- EO
