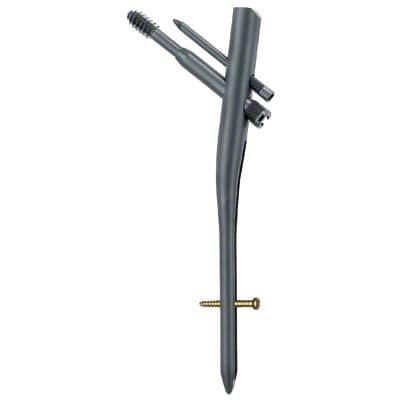

Część bliższa kości udowej / Targon® PF
Protruzja śruby ślizgowej w tkankę miękką okołokrętarzową jest wynikiem wgniecenia strefy złamania. Może to nastąpić w znacznym stopniu podczas mobilizacji, szczególnie w przypadku kości zmienionej osteoporotycznie. Boczne wyciąganie teleskopowe systemu podpierającego jest kluczowe, ponieważ sztywny implant przebiłby głowę kości udowej przyśrodkowo. Protruzja śruby ślizgowej w kierunku bocznym może jednak prowadzić do znacznego podrażnienia i bólu w obrębie powięzi szerokiej i może powodować poważne utrudnienie w rehabilitacji, szczególnie u słabych, starszych pacjentów.
Zostało to pominięte poprzez mocne zabezpieczenie tulei podtrzymującej w gwoździu za pomocą gwintowania oraz poprzez zabezpieczenie wysuwania śruby podtrzymującej poza koniec tulei podtrzymującej.
W tej konstrukcji, krótsze ramię dźwigni śruby podtrzymującej ma pozytywny wpływ na proces teleskopowy. Krótkie ramię dźwigni wymaga niewielkiej siły w celu zapewnienia dynamizacji.
