TSPACE® 3DImplant TLIF
Przeznaczenie

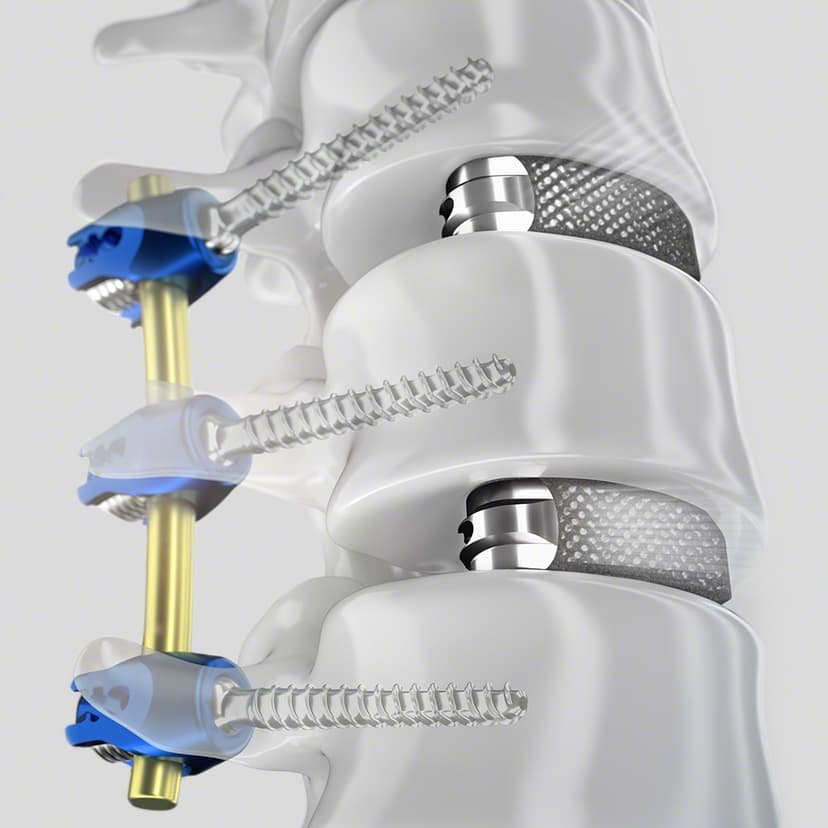

- Stabilizacja odcinka lędźwiowego i piersiowego kręgosłupa poprzez dostęp tylny, jedno- i wielopoziomowa
- Zawsze używaj TSPACE® 3D w połączeniu ze stabilizacją transpedicularną
- TSPACE® 3D może być wszczepiony poprzez otwarty lub minimalnie inwazyjny dostęp tylny

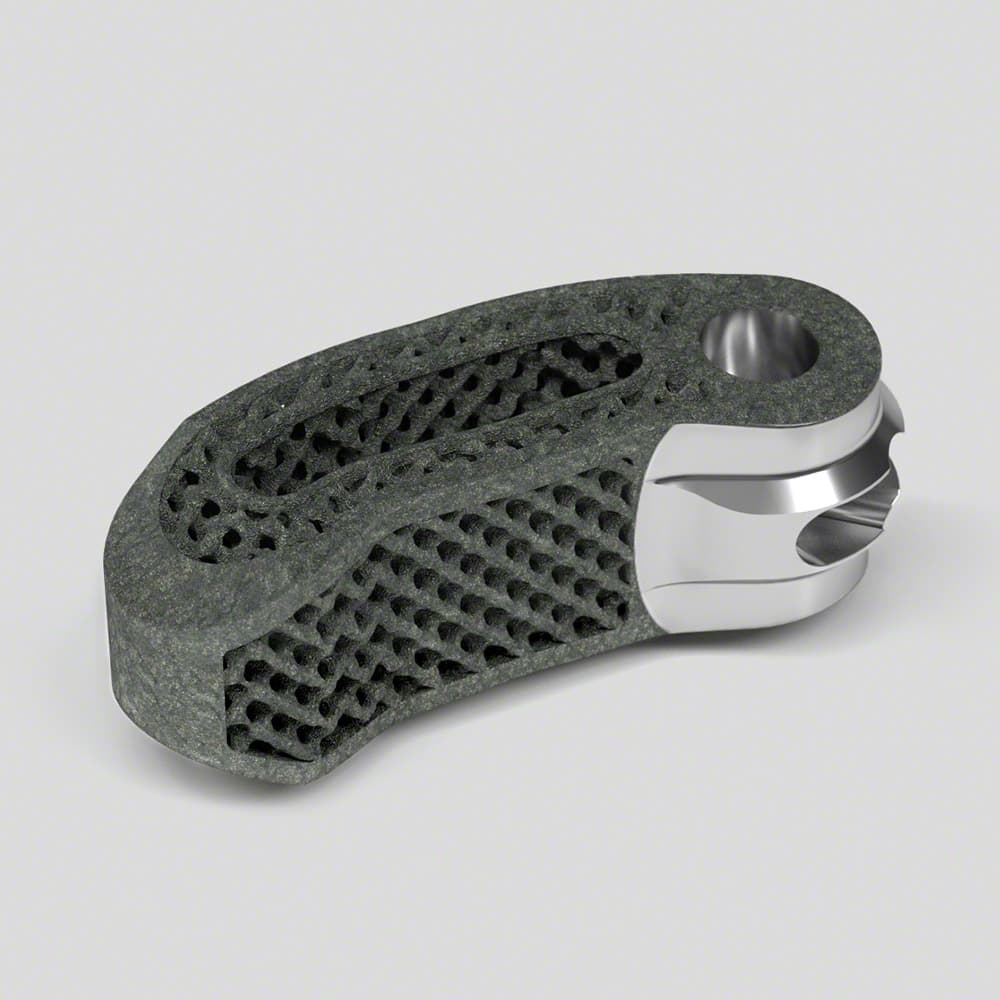

Projekt implantu
- Solidna konstrukcja, bez ostrych krawędzi, zapewnia stabilność biomechaniczną i gładkie wprowadzenie do przestrzeni dysku, minimalizując ryzyko zranienia tkanek miękkich.
- Otwarta, porowata struktura, zaprojektowana w taki sposób, aby zapewnić stabilność pierwotną i wtórną.
- Anatomiczna konstrukcja płytki końcowej implantu zapewnia dobrą powierzchnię styku między implantem a blaszkami granicznymi kręgów, jednocześnie umożliwiając dodanie materiału kostnego, aby umożliwić przerost kości przez środek implantu.
- Obły kształt zapewnia gładkie wprowadzenie do przestrzeni dysku.
- Inserter (narzędzie do wprowadzenia implantu) posiada możliwość kontrolowania odpowiedniego kąta i ułożenia implantu w przestrzeni międzykręgowej podczas implantacji.
- Dobra widoczność na zdjęciu rentgenowskim umożliwia zlokalizowanie położenia implantu.[1], [2].
